CNC Tube Bending & Tube Rolling

Unison CNC Benders
2
Round Tube Capacity
50 mm
Square Tube Capacity
40 x 40 mm

CNC Tube Bending & Tube Rolling

Dealercast specialises in subcontract CNC mandrel tube bending, supplying repeat-production tubular components and welded assemblies to manufacturers throughout the UK.

Operating two Unison Breeze CNC tube bending machines alongside additional manual bending and tube rolling equipment, we manufacture components in mild steel, stainless steel and aluminium.

From individual bent tubes to complete welded fabrications, we offer a flexible manufacturing service supported by extensive existing tooling.

Close up of multiple bent pieces of tube
Handrails on the inside of a bus
Row of multiple matching bent handrails

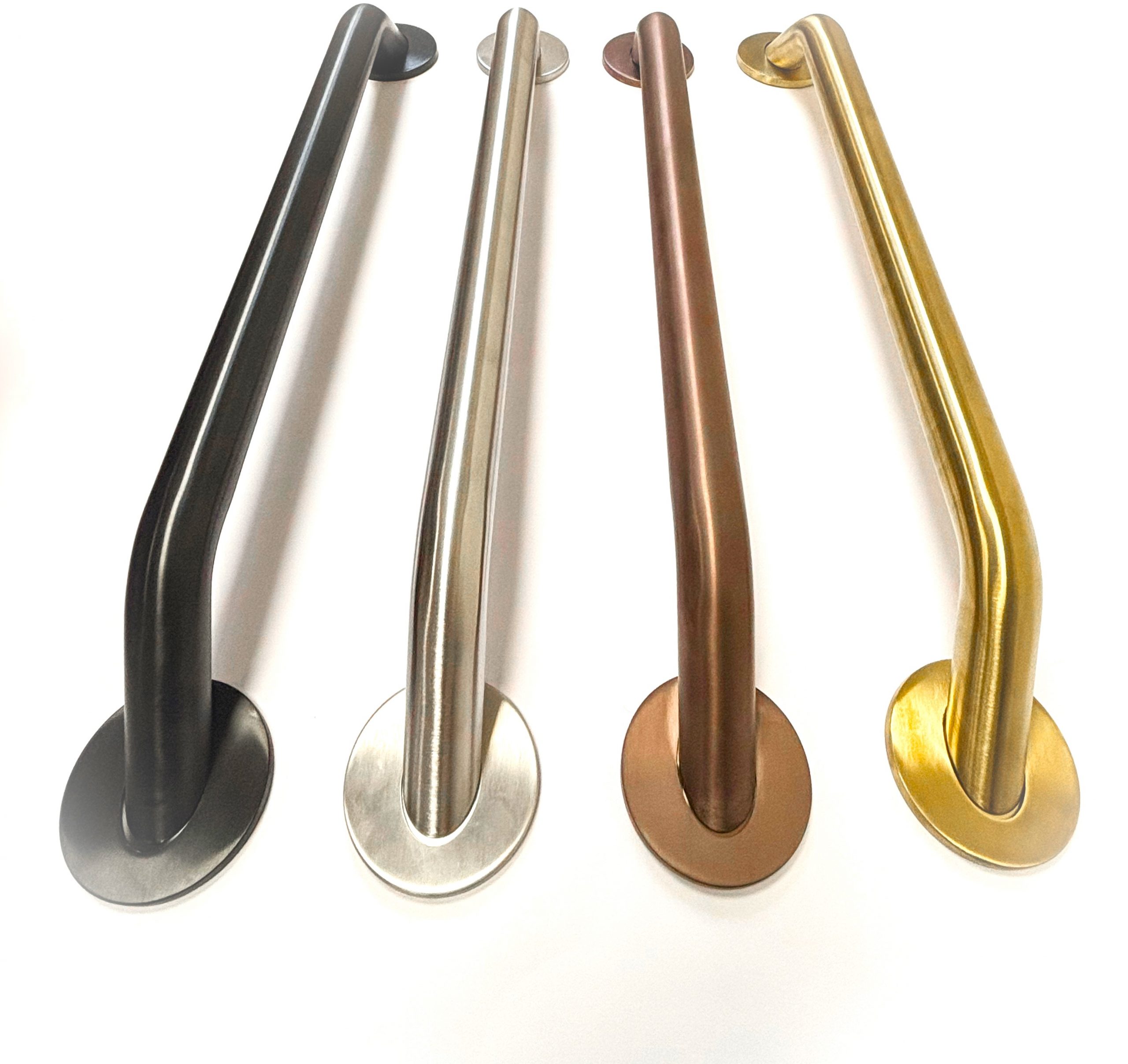

Accessibility Handrail

Our tube bending capabilities

Our CNC mandrel tube bending equipment allows us to produce consistent, repeatable bends across a variety of tube sizes, materials and geometries.

Using our existing tooling, we can manufacture components incorporating multiple bends and radii, with mandrel support used where appropriate to help maintain tube shape and reduce deformation.

Our equipment and manufacturing capabilities include:



CapabilitySpecification
CNC tube bending machines2 × Unison Breeze
Round tube (CHS)Up to 50mm outside diameter
Square tube (SHS)Up to 40 × 40mm
Rectangular tube (RHS)Up to 40 × 20mm
MaterialsMild steel, stainless steel and aluminium
Bending processesCNC rotary draw, mandrel bending and manual bending
Additional processesTube rolling, welding and fabrication
ProductionPrototypes, small batches and repeat production

Our available bending configurations depend on tube diameter, wall thickness, material grade, bend radius and component geometry.

Available Tube Bending Tooling

Dealercast has an extensive range of existing tube bending tooling, covering a variety of tube diameters, wall thicknesses and centreline radii.

By manufacturing components around our available tooling, customers can often avoid the additional costs and lead times associated with purchasing new bending dies.

The table below provides an overview of our existing tooling and tube rolling capabilities.

Tube Bending Tooling Schedule

Tube SizeFixed CLR (mm)Wall Thickness (mm)Tube Rolling
8mm241.0—
10mm351.0—
12 / 12.7mm241.0 / 1.5—
16mm351.5 / 2.0—
19mm301.0 / 1.5—
21.3 / 22mm44 / 1001.2 / 1.5 / 2.0Available
25 / 25.4mm50 / 1051.5 / 2.0Available
28mm513.0—
30mm621.5 / 2.0Available
31.75mm51 / 90 / 1502.0 / 3.0Available
33.7mm (1″ NB)80——
35mm50 / 70 / 75 / 90 / 113 / 150 / 1701.5 / 2.0Available
38.1mm57 / 76 / 90 / 1461.2 / 1.5 / 2.0Available
42.4mm1002.0Available
48.3mm852.5 / 4.0Available
30 × 30mm SHS621.5—
40 × 40mm SHS1201.5 / 2.0—
40 × 20mm RHS120——

CLR = Centreline Radius. All dimensions are in millimetres.

Tooling suitability depends on material specification, wall thickness, bend angle and component geometry. Please contact us to confirm the suitability of tooling for your requirements.

Don’t see the size or radius you require?

Contact our team to discuss your component specifications and available manufacturing options.

Tube Rolling & Large-Radius Bending

In addition to our fixed-radius tube bending capabilities, Dealercast provides tube rolling for larger-radius bends and curved tubular components.

Tube rolling allows us to produce gradual curves and larger radii without requiring a dedicated fixed-radius bending die for every application.

Our rolling equipment accommodates a variety of tube sizes, including 35mm and 38.1mm round tube with radii above 190mm, subject to material and component requirements.

Typical applications include curved rails, equipment frames, protective hoops and other tubular components requiring larger-radius bends.

Tubular Components & Applications

Dealercast manufactures a wide range of bent tubular components and assemblies for established manufacturers.

Our experience includes commercial vehicles, catering equipment, industrial machinery, leisure products and specialist equipment.

Bent Tube Components

Individual bent tube components manufactured to customer drawings, including multi-bend parts and repeat-production items.

Swimming Pool handrail above some steps

Handles, Guards & Rails

Tubular handles, protective guards, support rails and other formed components for industrial and commercial applications.

A fabricated chassis for e-racing simulator

Tubular Frames & Chassis

Bent and welded tubular frames for specialist equipment, machinery and other manufactured products.

Fabricated Tubular Assemblies

Complete assemblies incorporating bent tubes, welded brackets, mounting plates and additional manufactured components.

Materials & Design for Manufacture

We regularly work with mild steel, stainless steel and aluminium, selecting appropriate tooling and bending methods to suit each material and component specification.

Tube diameter, wall thickness, bend radius and straight lengths can all influence the manufacturability and cost of a component.

Where possible, we recommend designing around existing tooling to improve production efficiency and minimise unnecessary tooling investment.

Our team can assist with practical design-for-manufacture considerations, helping customers develop tubular components suitable for consistent and repeatable production.

Need Design Help For Your Bent Tube Products?

Take advantage of our tube bending expertise. We can help you design and offer advice in how to design the shape of your tube.

Need some fabrication and welding work alongside your bent tube products?

Utilise our other services and let Dealercast supply you a fully complete product

More Than Tube Bending

Dealercast provides additional manufacturing services to complement our tube bending capabilities.

Our in-house operations include MIG and TIG welding, silver brazing, fabrication and assembly.

We also operate a 2kW fibre laser cutting machine, allowing us to manufacture brackets, mounting plates, gussets and other sheet-metal components for use within our fabricated assemblies.

By combining tube bending, laser cutting and welding, we can supply complete components and assemblies rather than individual bent tubes alone.

Additional services, including specialist machining, powder coating and other finishing operations, can be coordinated through our established subcontract manufacturing network.

Request a Tube Bending Quotation

Looking for a reliable subcontract tube bending manufacturer?

Dealercast supplies bent tubular components and fabricated assemblies to manufacturers throughout the UK.

Whether you require regular production quantities, a new component or an alternative manufacturing supplier, we would welcome the opportunity to discuss your requirements.

Please send us your drawings, material specifications, required quantities and anticipated delivery requirements.
